AH28 provides a high-quality and cost-effective EV charging station designed to offer full Mode 3 fast charging to any EV in US.

Input Rating: Nominal 200-240V AC single-phase
Output Rating: 9.6kW/40A, 11kW/50A
Internal RCD: 20mA CCID
Display: 2.8” LCD
Network Interface: Ethernet/ WiFi/ 4G smart internet connection
OCPP: Full OCPP 1.6J/ OCPP 2.0.1 support
ISO15118 Plug & Charge: Upgradable
Ingress Protection: IP55
Shipping Dimensions: 500 x 383 x 243 mm
Charging Interface: SAE J1772 Type-1
Mounting Type: Wall or Floor( pedestal supplied separately)

AH28 AC EV Charging Station

CA$1,999.00

Amperage

Plug Type

Connector Type

Quantity

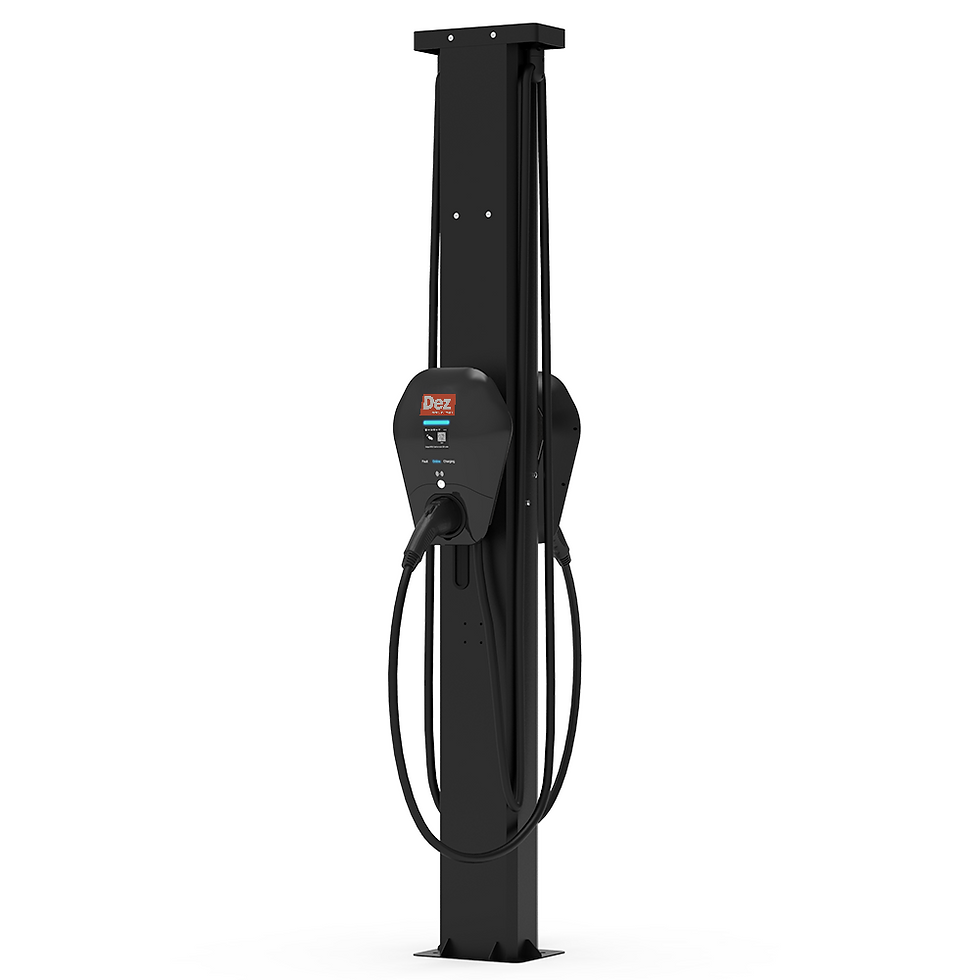

EV charger made for both residential and commercial. The AH10 is a smart, easy to install charger that allows you to add smart services and manage the charger remotely. SAE J1772 plug ensures compatibility with all electric vehicles and a seamless charging experience.

Main Features:

Compatible with all EVs and power grids

Streamlined design, simple and elegant appearance

2.8′ LCD display for easy and user-friendly operation

Unique installation design with independent backplate

Intelligent Ethernet, Cellular, WLAN Switching

Flexible output current/power configuration

Customizable breathing light

Smart dynamic load balancing support

User authentication via RFID or Mobile App

Multifunctional charger commissioning web portal

Remote control and monitoring
